Gantry Crane has the features of large lifting capacity, high site utilization, wide operating range, and adaptability. Widely used for handling and lifting materials in open storage, stock ground, railway freight stations, ports, etc. Huada Heavy Industry is a professional manufacturer and supplier of gantry cranes in China, with 15 years of export experience. We provide one-stop solutions, from consultation, solution design, processing, and manufacturing to delivery and installation of gantry cranes, saving customers time and effort.

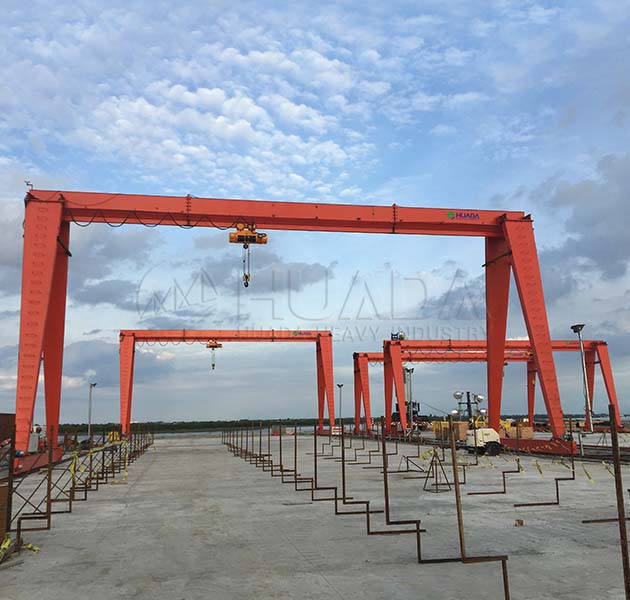

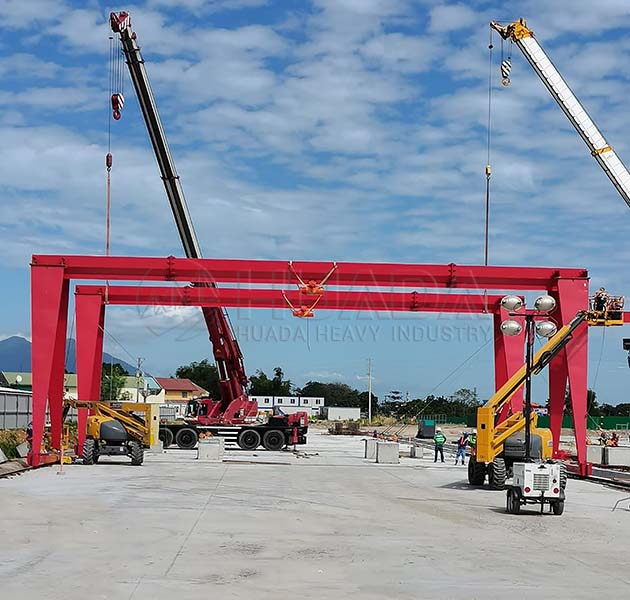

Single Girder Gantry Crane

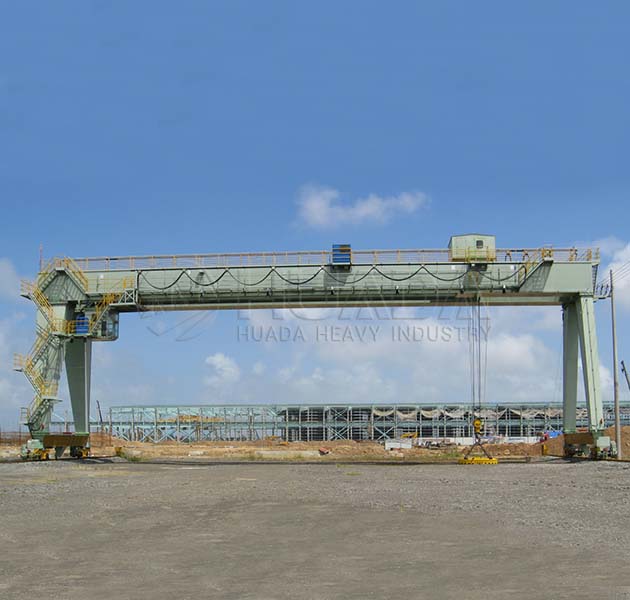

Double Girder Gantry Crane

Truss Gantry Crane

Portable Gantry Crane

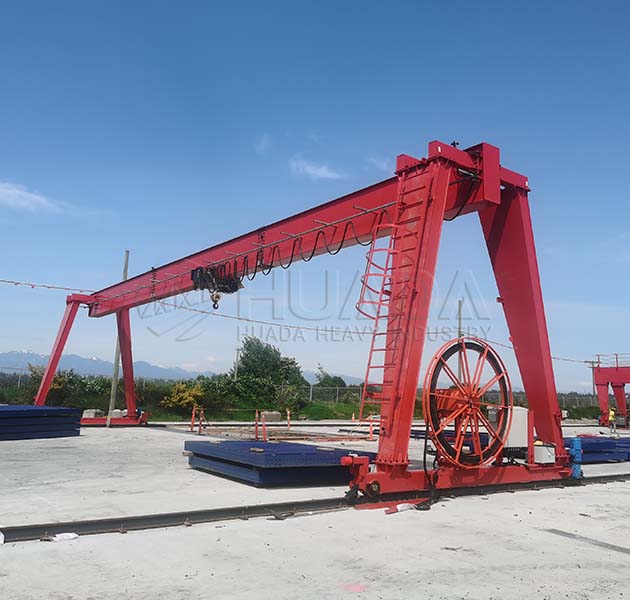

Single Girder Gantry Crane

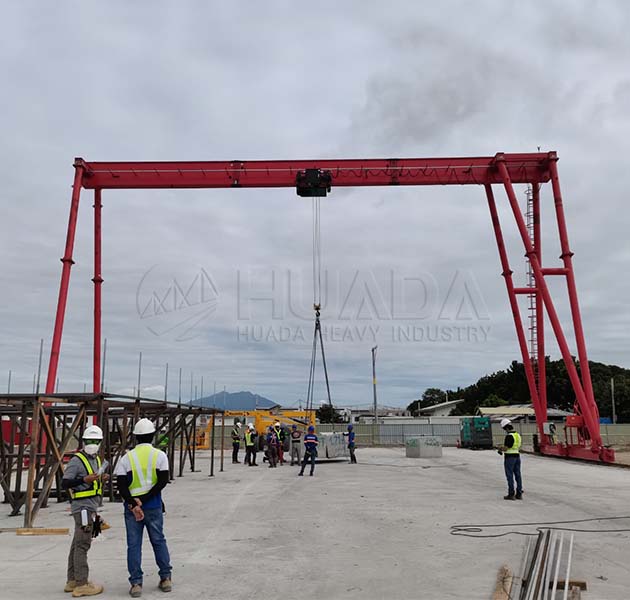

Single Girder Gantry Crane is simple in structure, easy to manufacture and install, light in weight, and the main beam is mostly off-rail box frame structure. Compared with double girder gantry crane, the overall stiffness is weaker. Therefore, when the lifting capacity Q ≤ 50t and span S ≤ 35m, this form can be used.

Parameters

Types	Single Girder
Load capacity	5 ton, 10 ton, 20 ton or customized
Span	8-35m
Lifting height	6-12m
Lifting speed	Vary with lifting capacity, or customized.
Work duty	A5
Control way	Cabin, wireless remote, pendant push button
Safety device	Buffer, current overload protection, overload device

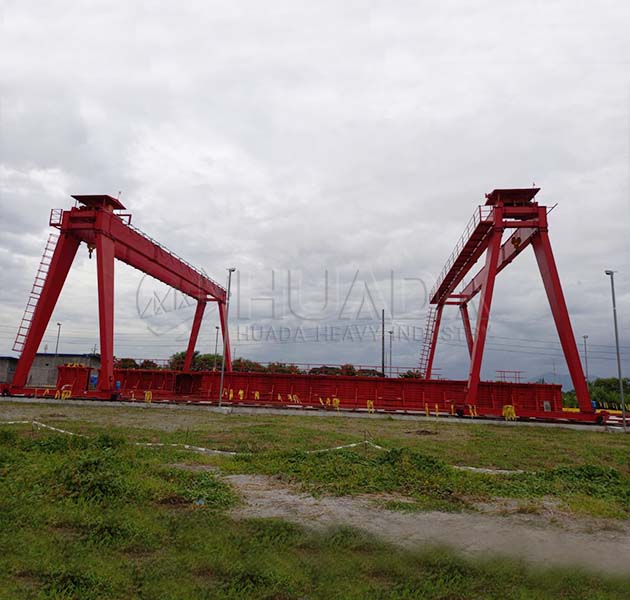

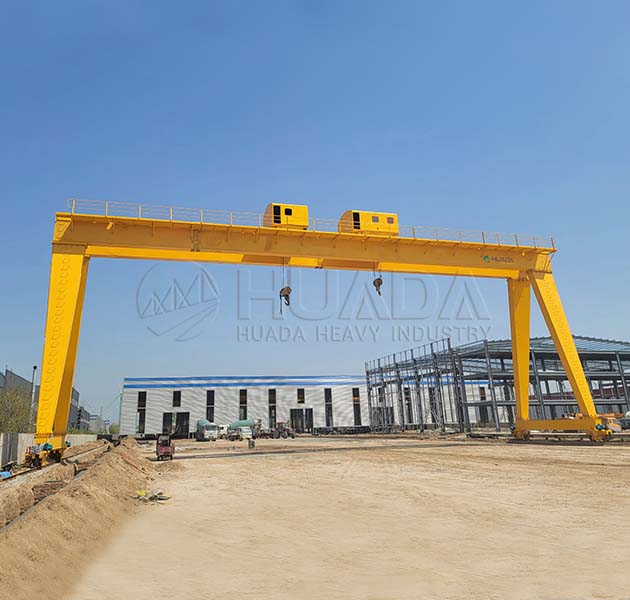

Double Girder Gantry Crane

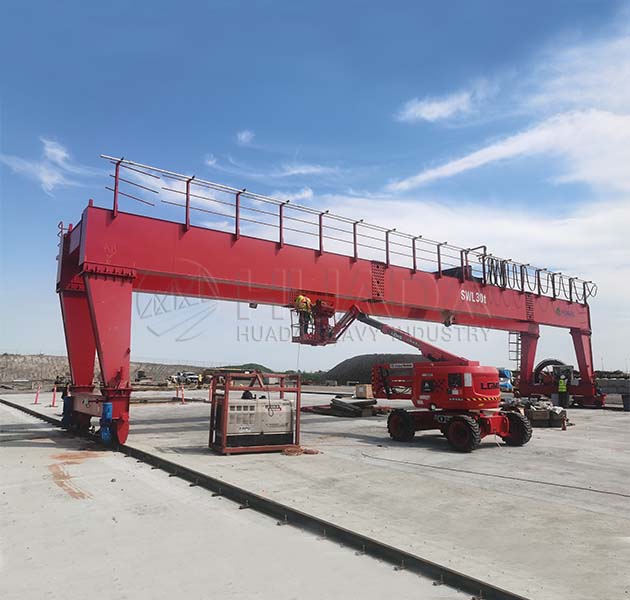

Double Girder Gantry Crane adopts double main girder box girder structure, which has the characteristics of strong load capacity, high safety, and high rigidity. The lifting mechanism adopts QD trolley or double gourd trolley, which is mostly used for loading and unloading in open places and warehouses, and this structure crane can make full use of site resources.

Parameters

Types	Double girder
Load capacity	10 ton, 20 ton, 50 ton, 100 ton, 1000 ton or customized
Span	18-35m
Lifting height	6-18m
Lifting speed	Vary with lifting capacity, or customized.
Work duty	A3-A7
Control way	Cabin, wireless remote, pendant push button
Safety device	Buffer, current overload protection, overload device

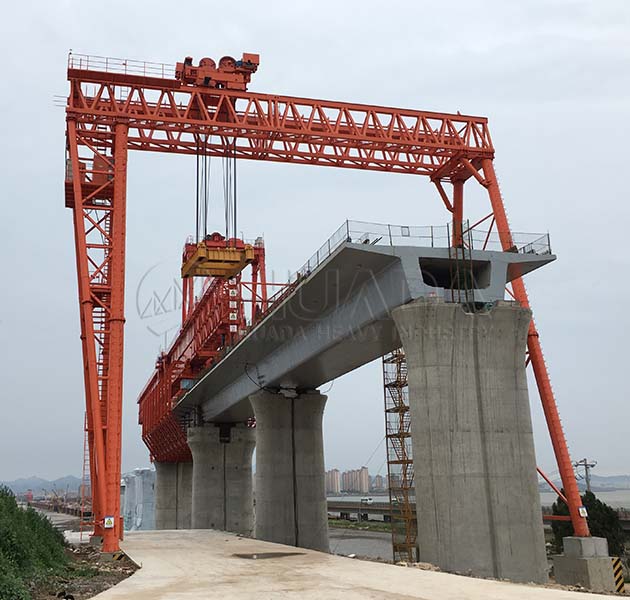

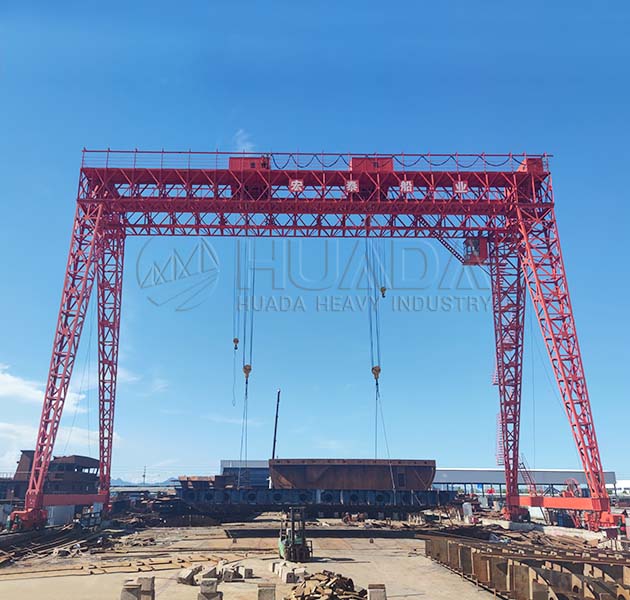

Truss Gantry Crane

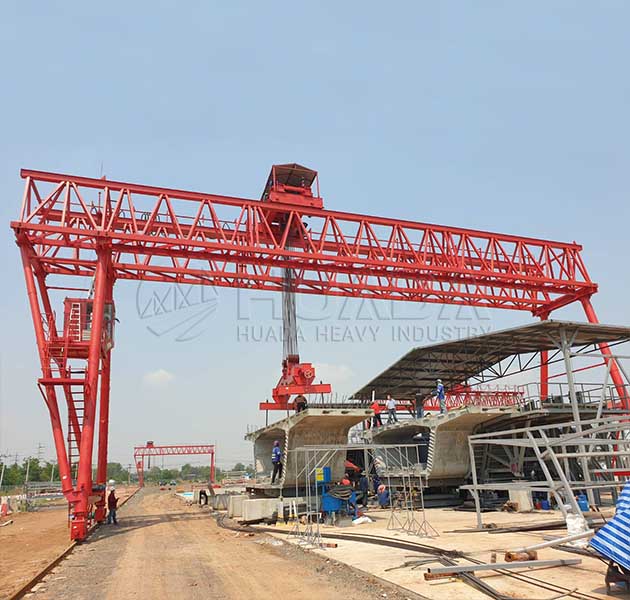

Truss Gantry Crane adopts angle steel or I-beam welded structure form, the most praiseworthy features are low cost, lightweight, and good wind resistance. Its wind-permeable structure can withstand winds of 8 or more in outdoor operations, making it suitable for outdoor projects with low safety requirements and small lifting weights. It is especially suitable for coastal, riverine, or more open construction sites.

Parameters

Types	Single Girder/ Double girder
Rated Loading Capacity	10 ton, 20 ton, 40 ton, 100 ton, 1000 Ton or customized
Span	5-35m
Max. Lifting Height	6m
Lifting speed	Vary with lifting capacity, or customized.
Work duty	A3-A5
Control way	Cabin, wireless remote, pendant push button
Safety device	Buffer, current overload protection, overload device

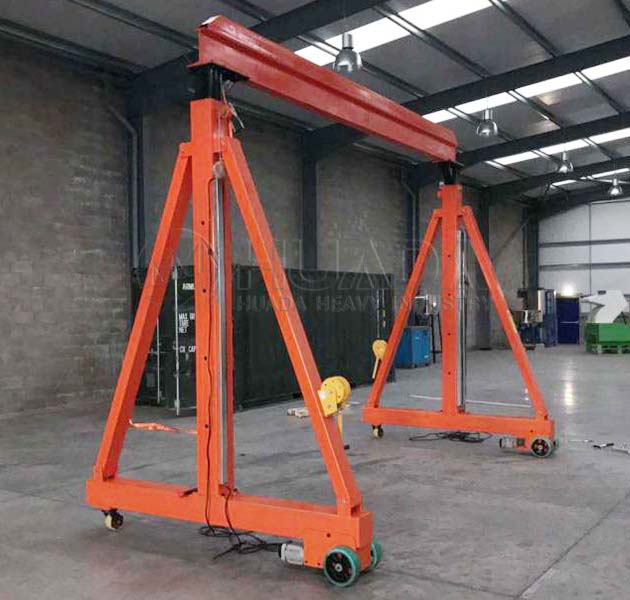

Portable Gantry Crane

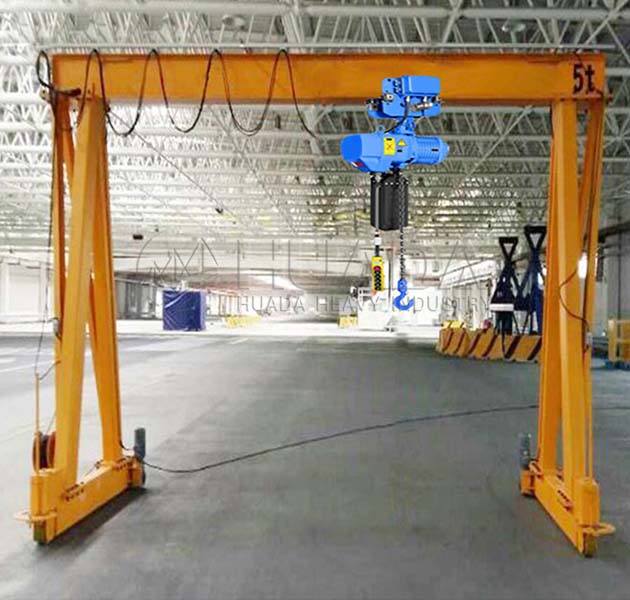

Portable gantry crane is a lifting equipment that provides an economical lifting solution to lift materials in various industrial. It can lift 0.5-10 ton heavy loads. One of the primary features is its mobility. Portable gantry cranes are often equipped with wheels or casters, which allows they can easily move to different locations. Portable gantry crane for sale is widely used in workshops and manufacturing facilities, constructions sites, warehouses and storage yards and etc.

Parameters

Types	Portable gantry crane
Load capacity	0.5ton-10ton
Span	2-12m / Customize
Lifting height	1-10m / Customize
Lifting speed	Vary with lifting capacity, or Customize
Work duty	A3
Control way	Cabin, wireless remote, pendant push button
Safety device	Buffer, current overload protection, overload device

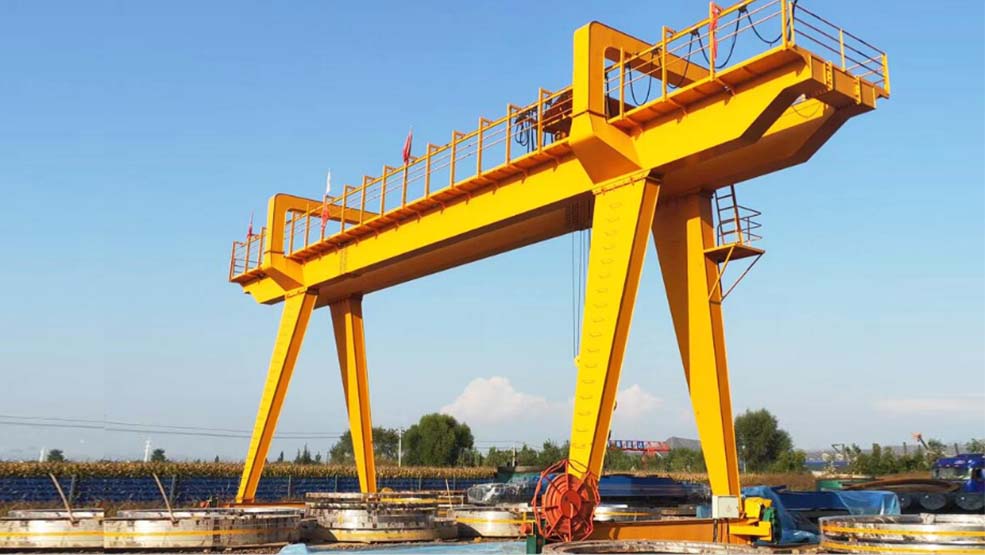

Features of Gantry Crane

Huada Heavy Industry focuses on the manufacture & design of Gantry Crane. We are committed to creating value for our customers and provide with the most economical and efficient material handling solutions.

Steel structure: Q235B/Q345B carbon structural steel with seamless once forming technology more strong and more elegant. Suitable for different operation temperatures.

Lifting mechanism: Reducer, drum, motors protection class F class, China or World top quality motor brands, such as Jiamusi, Nanjing motor, ABM, etc.

Hook: Finest steel forged hook, long using life;

Wheels: Vacuum casting, with compact structure, convenient maintenance, high transmission efficiency, and long service life;

Travel mechanism: With China or world-famous crane motor, reducer supplier, such as Nanjing motor, SEW, etc.

Electrics: China, Schneider or Siemens etc.

Gantry Crane Video

Gantry Crane - Casting Yard and Port Terminal Lifting Solutions

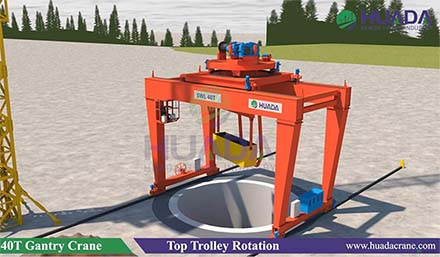

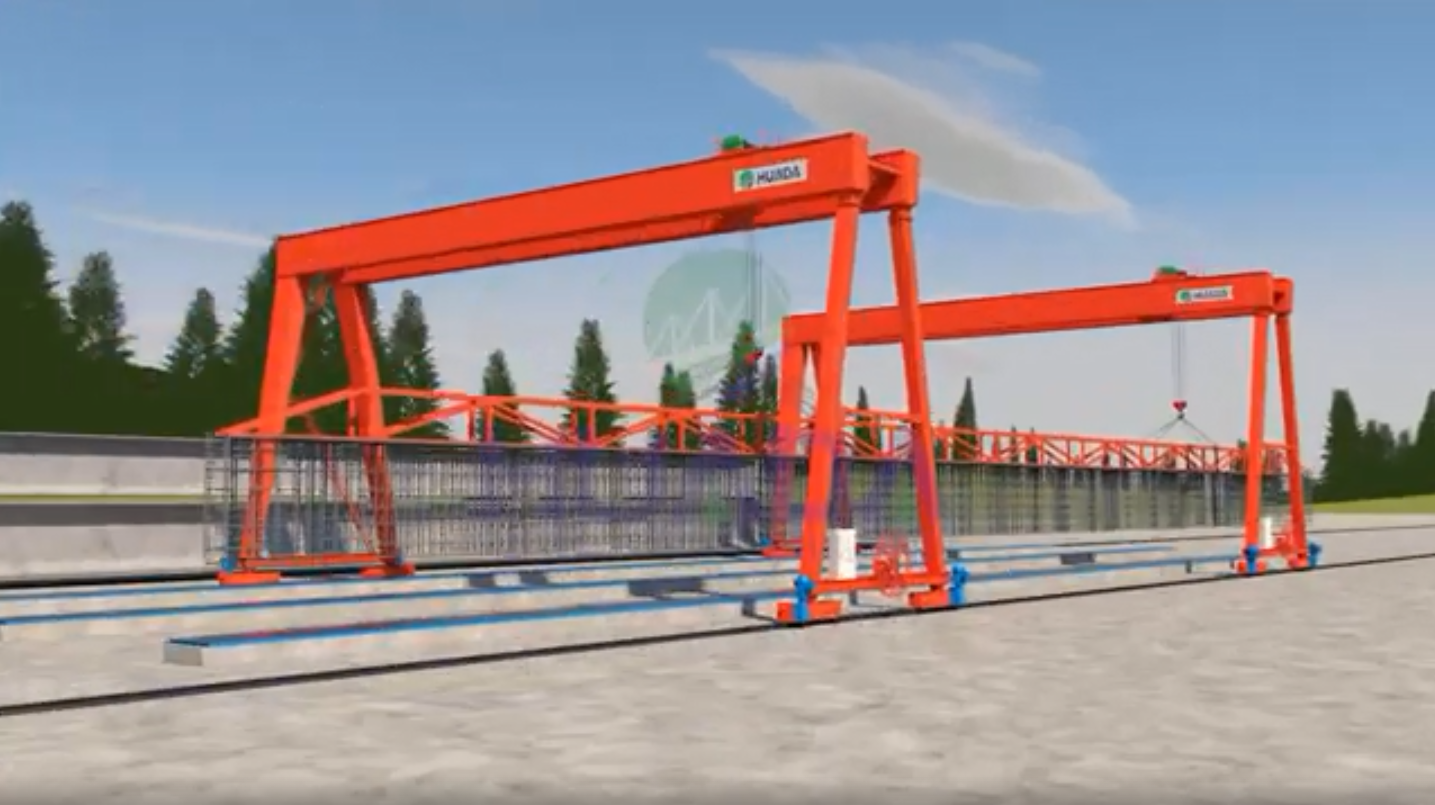

40t Gantry Crane for Tunnel Project | 3D Model

Rubber Tyred Gantry Crane Factory Commissioning

Gantry Crane for Precast T Beam Construction

Application

Gantry crane is widely used for handling and lifting materials in open storage, stock ground, railway freight stations, ports, and so on.

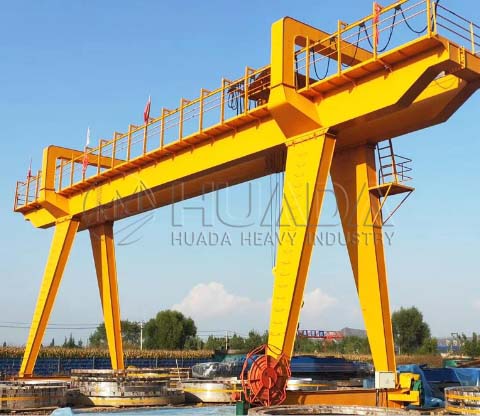

150T Industrial Gantry Crane

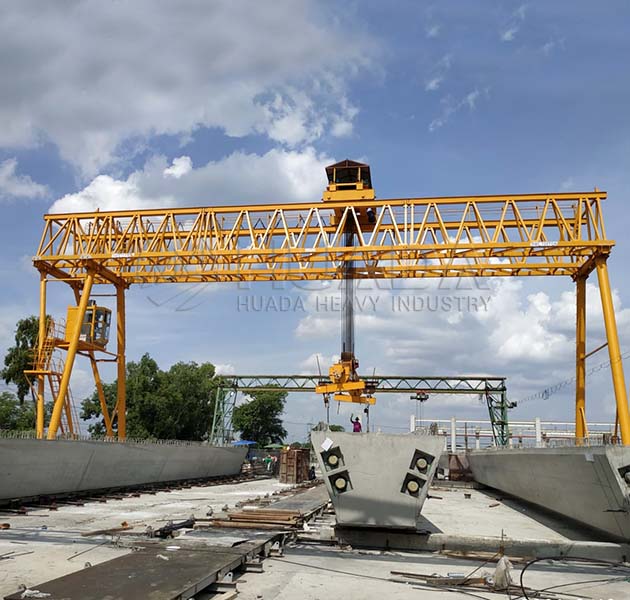

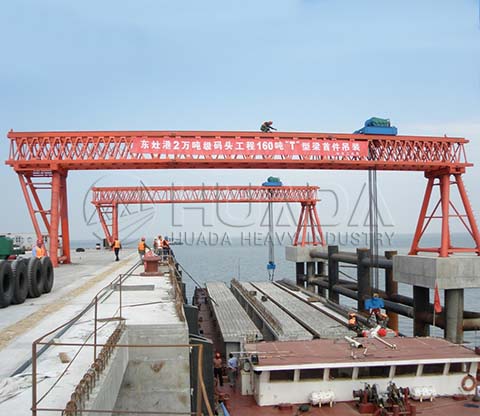

160T Truss Gantry Crane for Precast T Beam

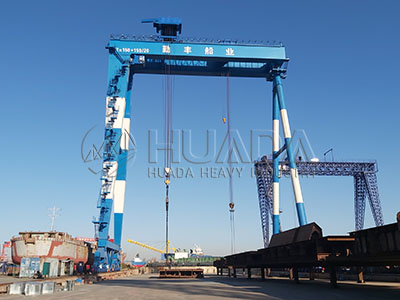

300T Shipbuilding Gantry Crane

130T Truss Gantry Crane for Bridge Construction

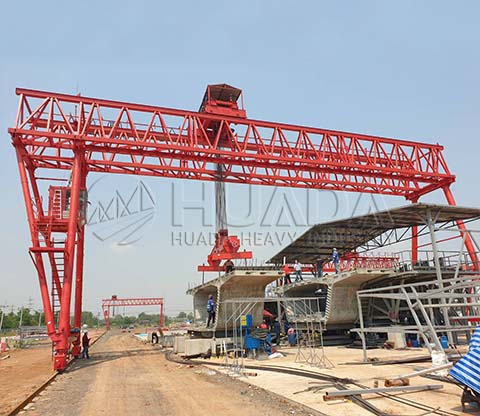

120T Truss Gantry Crane for Precast Segment Girder

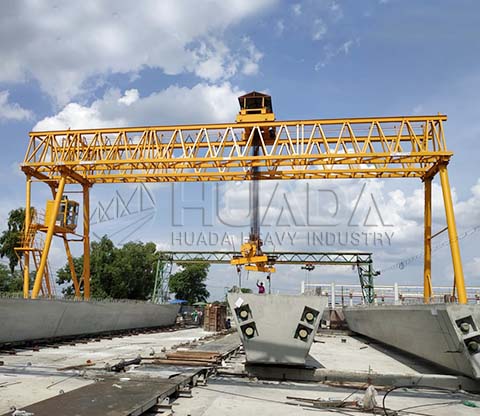

120T Truss Gantry Crane for Precast Concret Beam

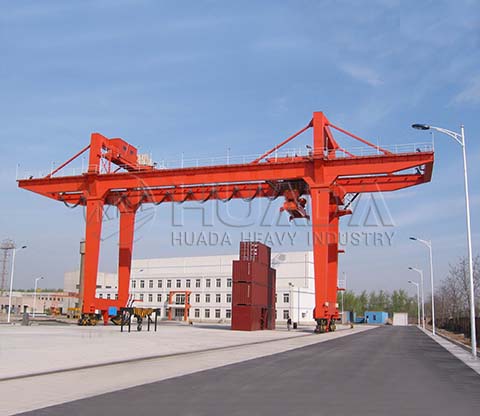

60T Gantry Crane for Container Yard

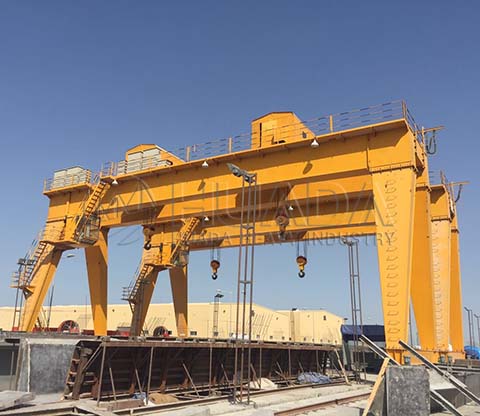

60T Gantry Crane for Construction Project

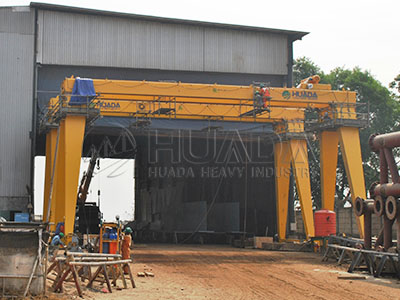

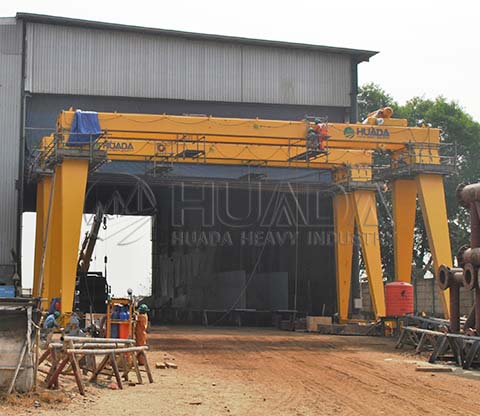

10T Gantry Crane for Warehouse

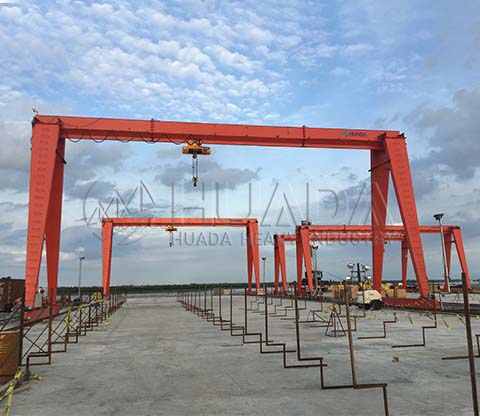

10T Gantry Crane for Precast Yard

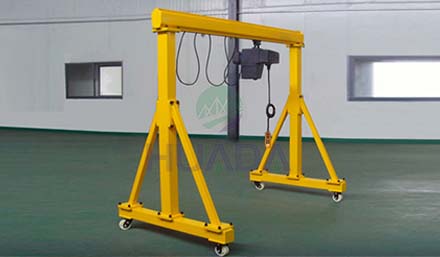

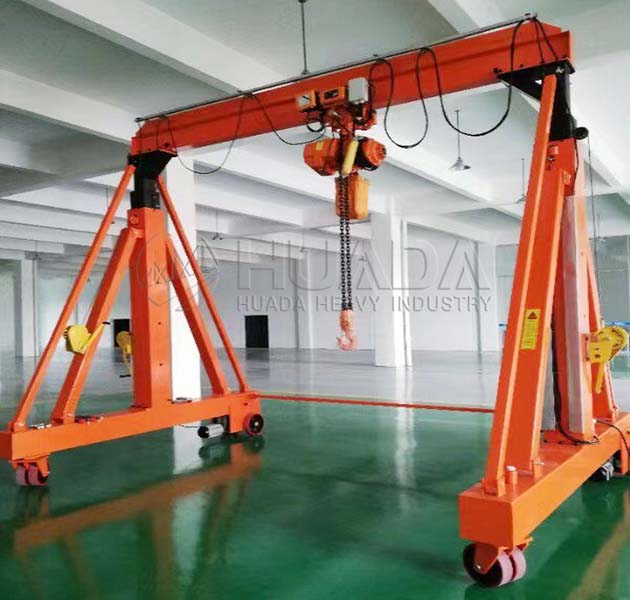

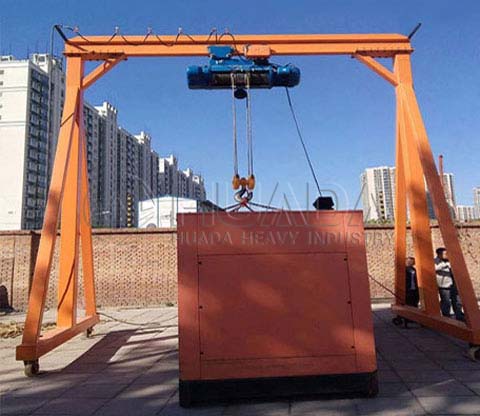

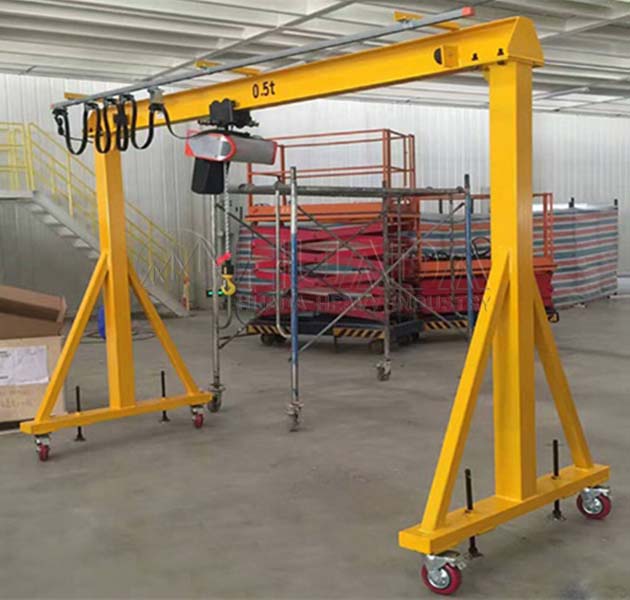

5T Portable Gantry Crane for Workshop

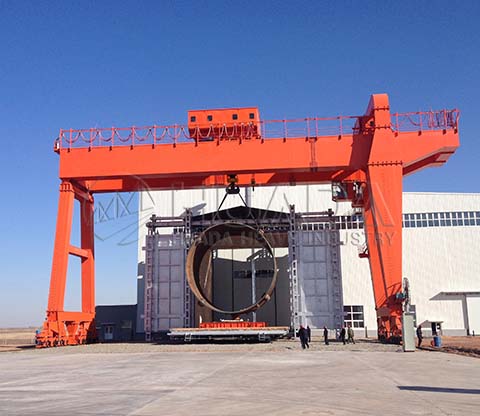

300T Gantry Crane for Steel Industry

Professional Gantry Crane Manufacturer

Main Parts

Safety Device

Gantry Crane Drawing

Specifications

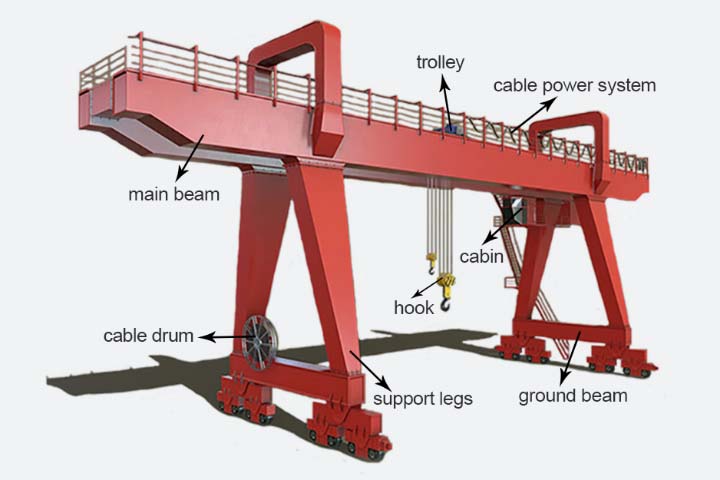

Main Components Of Crane

The main components of the bridge gantry crane are the main beam, support legs, ground beam, cable drum, cable power system, trolley, cabin control, and other components. The main structure is mainly a plate welding box structure, whose main beam and outrigger can be divided into several sections, and the nodes are mainly linked together by node plates and refined high-strength bolts.

Main Beam

With strong box type and standard camber. There will have reinforcement plate inside the main girder.

Support Legs

One set with four pieces including climbing ladder for maintenance

Ground Beam

With strong box type and standard camber. There will have reinforcement plate inside the main girder.

Cable Drum

ensure that the cable drum winding speed and equipment movement speed synchronization, At the same time ensure that in the process of winding tension cable suffered moderately.

Cable Power System

There are two types of crane cables: round cables for long distance travel. Flat cables are used to supply power for lateral travel.

Trolley

Double speed & VFD speed control. Motor, reducer, and brake three in one. A variety of types are available.

Hook

The sheave pin includes lubrication fittings. Designed for easy maintenance. Drive protection includes slip clutch.

Cabin Control / Remote Control

High flexibility and reliability. Provide a comfortable working environment. Flexible and efficient performance, strong and reliable, secure and dependable communications.

Multiple Protection Safety Devices

See how seriously we take our customers' equipment safety.

Crane traveling limit switch

Weight overload protection device

Lifting height limit device

Voltage lower protection function

Phase sequence protection function

Emergency stop function

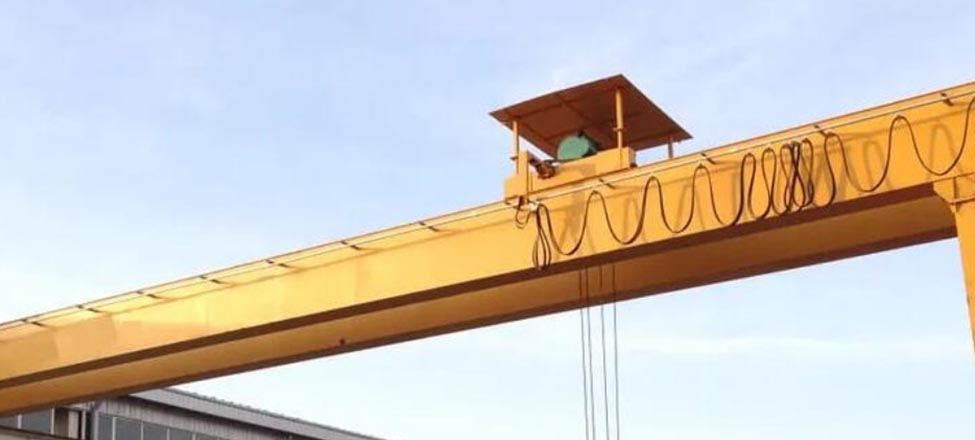

Rain cover for outside hoist, driving units, and electrical cubicle.

Warning indicator: flashing lights and warning sound

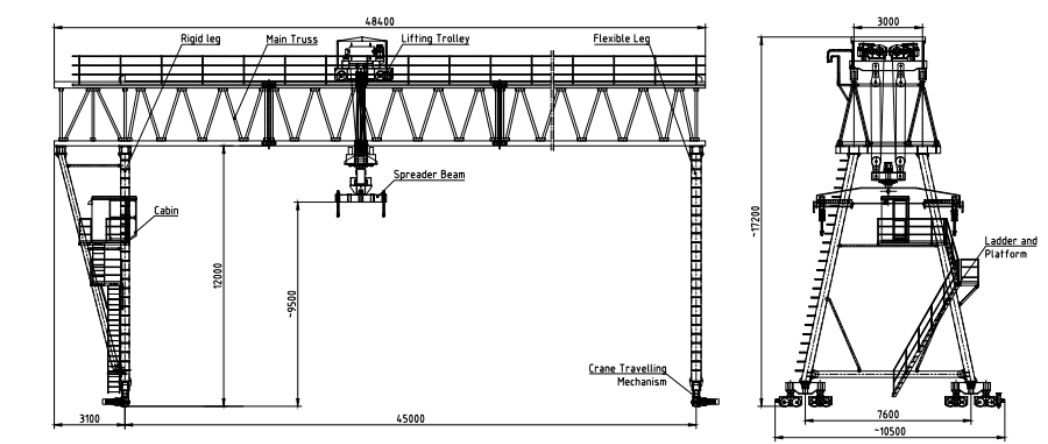

Gantry Crane Drawing

Clear and complete spatial representation of our Industrial gantry crane plans of the three-dimensional drawings provided below. The overall size of the crane along with the size and positioning of individual parts is provided so you can easily visualize and plan your work.

Gantry Crane Specification

You can customize gantry crane to meet your usage. Below is for your reference.

Single Girder Gantry Crane（CD/MD Hoist）
Capacity (t)	3	5	10	16	20	32
Span (m)	5~35	5~35	5~35	5~35	5~35	5~35
Lifting height (m)	6~30	6~30	6~30	6~30	6~30	6~24
Lifting speed (m/min)	8（0.8/8）	8（0.8/8）	7（0.7/7）	4.2（0.42/4.2）	4.2（0.42/4.2）	3（0.3/3）
Trolley speed (m/min)	20(30)	20(30)	20(30)	18	14	16
Crane speed (m/min)	20(30)	20(30)	20(30)	20(30)	20(30)	20(30)
Work duty	A3~A4	A3~A4	A3~A4	A3~A4	A3~A4	A3~A4
Track type	P24	P24/P30	P24/P30	P24/P30/P38	P30/P38	P30/P38

Double Girder Gantry Crane (Box Girder European Configuration)
Capacity (t)	10	30	50	80	100	160
Span (m)	10~36	10~36	10~36	15~36	15~36	15~36
Lifting height (m)	5~18	5~18	5~18	5~18	5~18	5~18
Lifting speed (m/min)	0.8/5	0.8/3.3	0.4-4	0.3-3	0.2-2	0.23-2.3
Trolley speed (m/min)	0-20	0-20	0-20	0-20	0-20	0-20
Crane speed (m/min)	0-30	0-30	0-30	0-30	0-20	0-20
Work duty	A4-A7	A4-A7	A4-A7	A4-A7	A4-A7	A4-A7
Track type	P30	P38/P43	P43/P50/QU70	QU70/QU80	QU80/QU100	QU80/QU100

Truss Gantry Crane (Double Girder)
Capacity (t)	30	50	80	100	120	160
Span (m)	10~35	10~35	10~35	15~35	15~45	15~45
Lifting height (m)	6~18	6~18	6~18	6~18	6~18	6~18
Lifting speed (m/min)	0.9	0.9	0.9	0.7	0.7	3.5
Trolley speed (m/min)	0-6	0-6	0-5	0-5	0-6	0-9
Crane speed (m/min)	0-9	0-9	0-9	0-9	0-9	28
Work duty	A3-A4	A3-A4	A3-A4	A3-A4	A3-A4	A3-A4
Track type	P38/P43	P43/P50/QU70	QU70/QU80	QU70/QU80	QU70/QU80	QU70/QU80/QU100

All Core Components Are Made Of Internationally Renowned Brands

Advantages Of Gantry Crane

Strong leg-crossing ability, large working range, and stable work.

Complete safety measures: wind siren, break-proof shaft, overturn-proof, etc.

Three-in-one reducer is adopted for long travel and cross traverse mechanism for easy maintenance.

Gantry crane is applied to general materials handling service in outdoor freight yards, such as loading, unloading, lifting, and transferring work.

The gantry crane is completed by relying on the rails, which eliminates the traditional fault sources of wheeled vehicles or diesel generator sets, and reduces the fault rate during the operation of the crane.

Most of the gantry cranes are driven by electricity, and there is no need to change the oil during use, effectively controlling the maintenance consumables, low maintenance costs, low cost, and significant economic benefits.

In the process of lifting the track, the track of the gantry crane is fixed, and it is used together with the vehicle positioning device, which avoids deviation during the heavy-load operation and has a high degree of automation.

The closed air-conditioning control room controlled by the linkage console has a wide view, flexible operation, comfortable work, and high efficiency.

During the operation of the gantry crane, it is directly connected to the high-voltage power supply, and in the case of moving the mechanism, there will be basically no noise pollution and air pollution.

Configuration Options

Options that improve your Gantry Crane's performance. You can always make an option for your device.

Provide Standard and Non-Standard Structure Designs

Single Speed and Frequency Conversion Designs

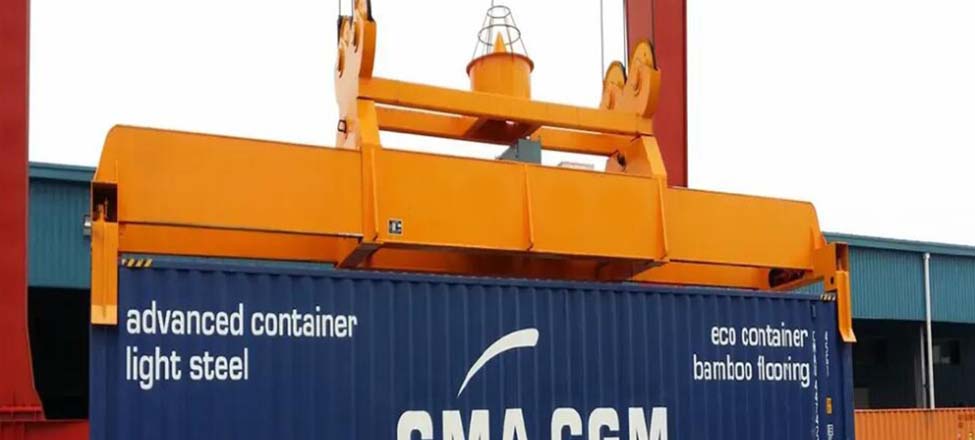

Customized Spreader

Various Operation Methods

Large Wheel Steering Design

Various Power Supply Methods

Climbing Ladder and Walking Platform

Night Lighting

Rain Cover

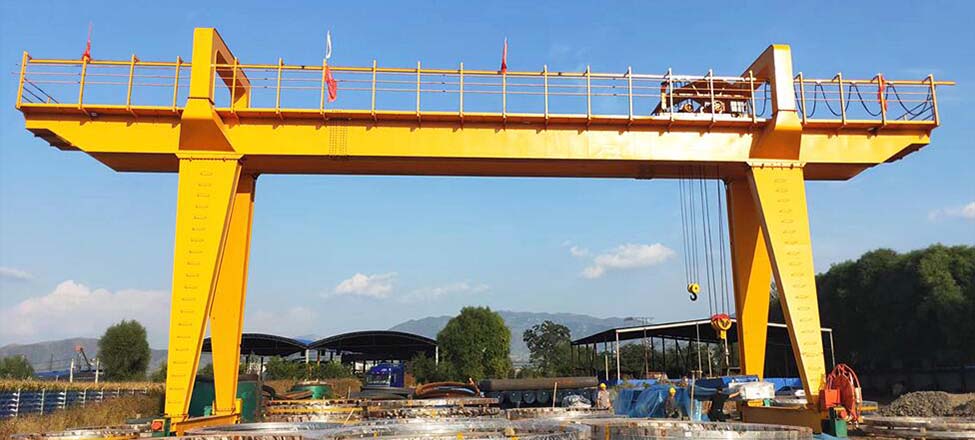

Provide Standard and Non-Standard Structure Designs

Various standard and non-standard structure designs are available for a wide range of applications (beam yard, material yard, workshop, bridge erection, subway gate machine, etc.

I want to customize

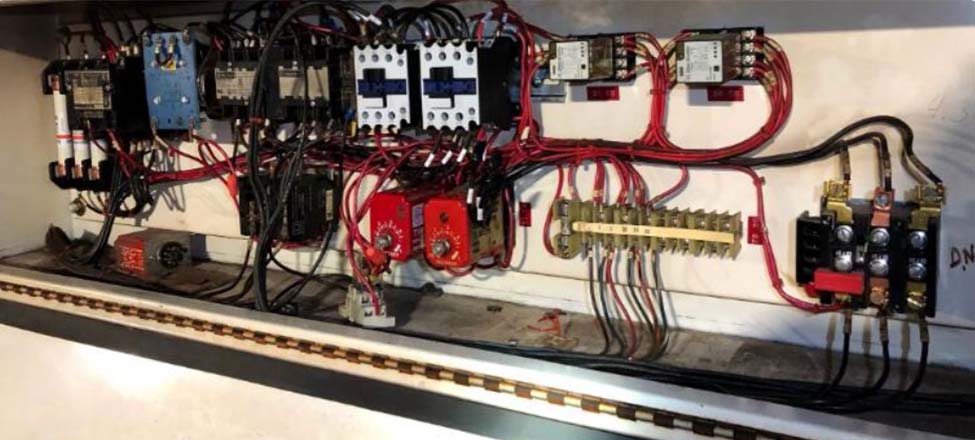

Single Speed and Frequency Conversion Designs

Single speed and frequency conversion designs for lifting and running are available to meet the usage needs of customers in different places.

I want to customize

Customized Spreader

Customized spreader is available to realize the lifting of special heavy objects.

I want to customize

Various Operation Methods

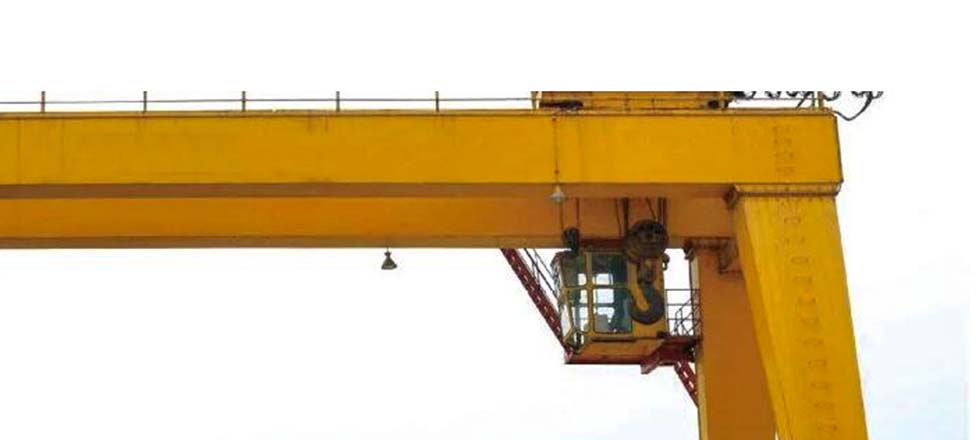

Various operation methods such as driver's room operation, remote control operation and handle line operation are available.

I want to customize

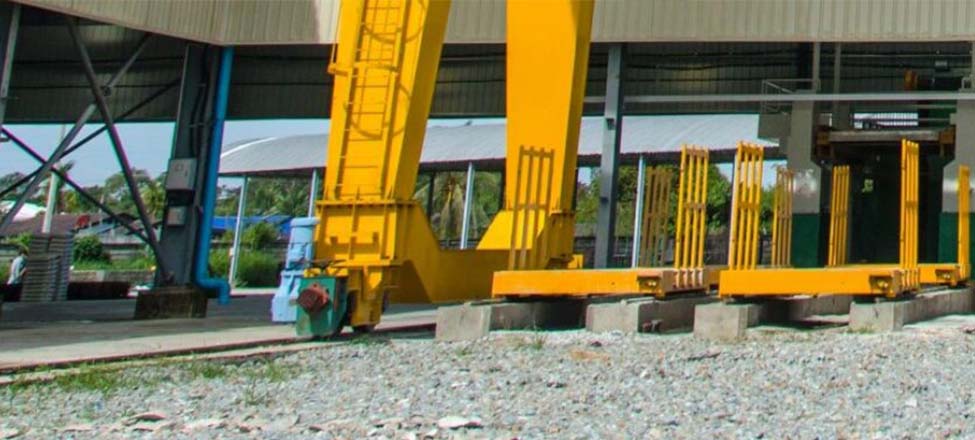

Large Wheel Steering Design

Large wheel steering design can be provided to realize lateral operation of the door machine, and longitudinal operation.

I want to customize

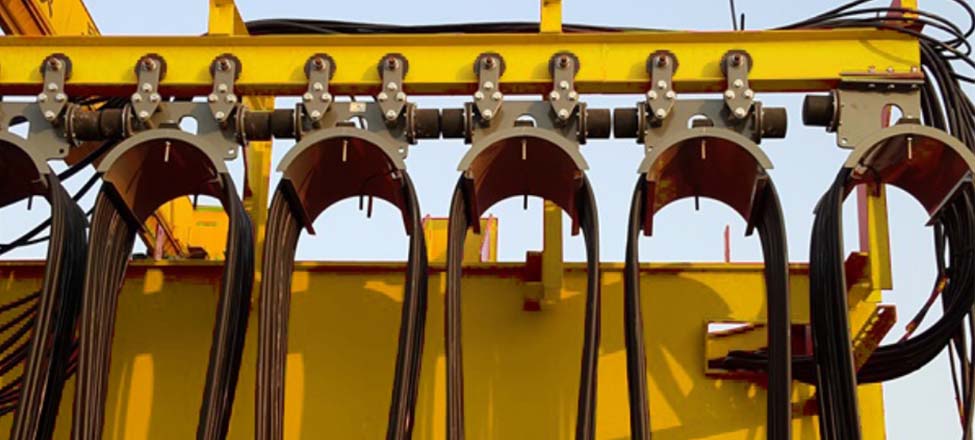

Various Power Supply Methods

It can provide power supply by slide wire, cable reel, and generator for customers to use in many occasions.

I want to customize

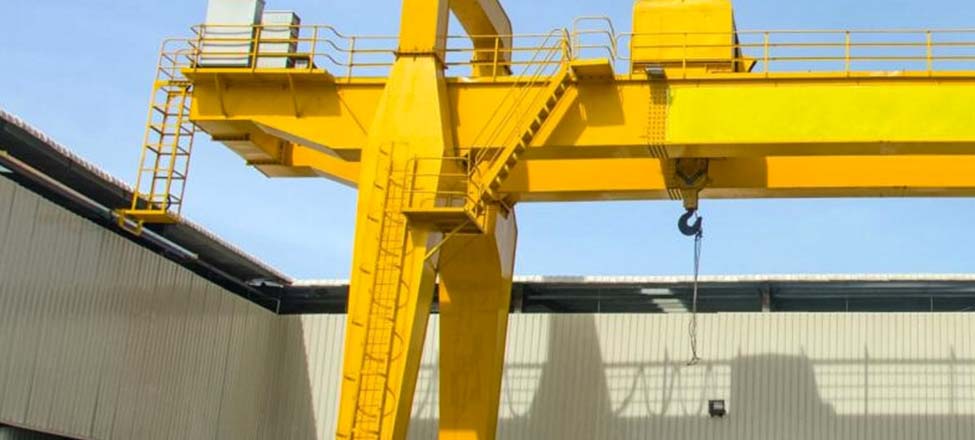

Climbing Ladder and Walking Platform

Reasonable design of climbing ladder and walking platform, more convenient for use and maintenance.

I want to customize

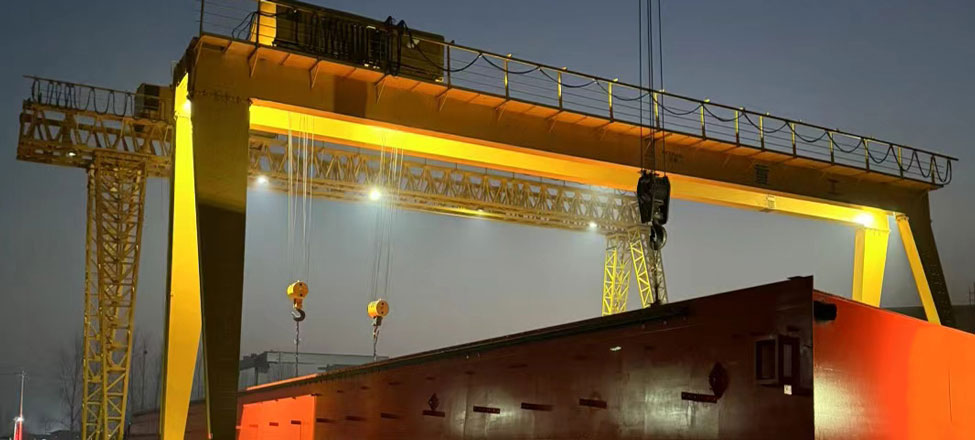

Night Lighting

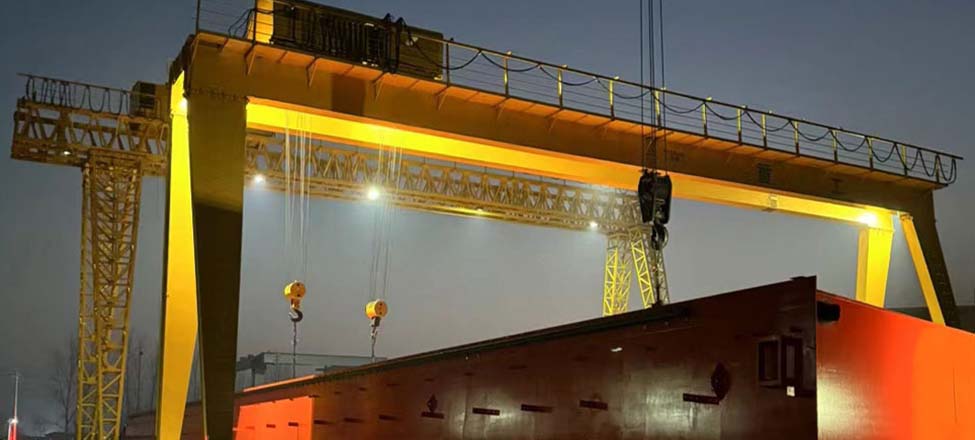

Provide night lighting, which can realize 24-hour operation.

I want to customize

Rain Cover

Equip the motor with rain cover to protect the motor.

I want to customize

Gantry Crane Project

Rich experiences in gantry crane projects design & manufacture. One-source gantry crane project services from design, processing, delivery, installation & future maintenance & repair.

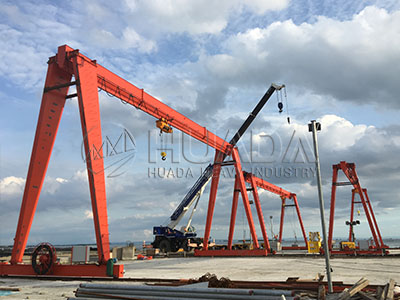

10T Single Girder Gantry Crane for Casting Yard

Lifting capacity:

10 ton

Span:

24m

Lifting height:

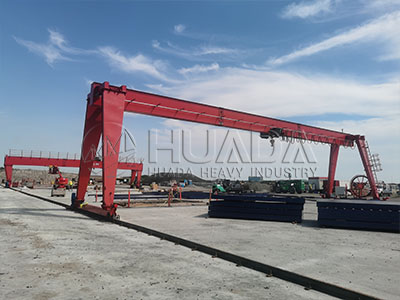

10T Single Girder Gantry Crane for Precast Yard

Lifting capacity:

10 ton

Span:

18m

Lifting height:

10T Double Girder Gantry Crane for Warehouse

Lifting capacity:

10 ton

Span:

15m

Lifting height:

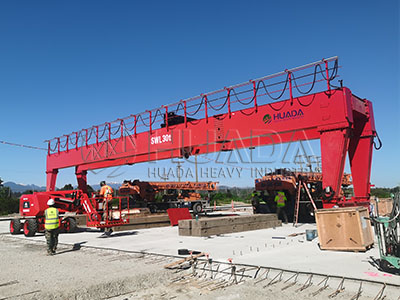

30T Double Girder Gantry Crane for Precast Yard

Lifting capacity:

30 ton

Span:

18m

Lifting height:

4.5m

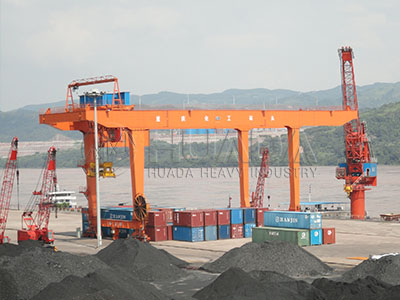

50T Rail Mounted Gantry Crane for Container Yard

Lifting capacity:

50 ton

Span:

30m

Lifting height:

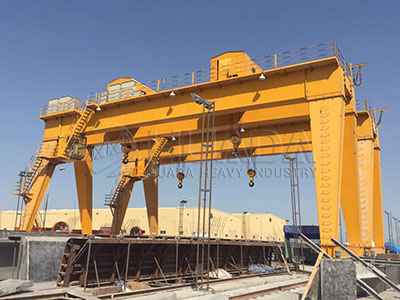

60T Double Girder Gantry Crane for Expressway Construction

60t gantry crane for expressway construction

Lifting capacity:

60 ton

Span:

24m

Lifting height:

10m

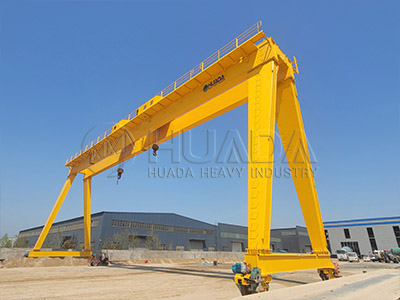

64T Double Girder Gantry Crane for Precast Yard

Lifting capacity:

32+32 ton

Span:

38m

Lifting height:

10m

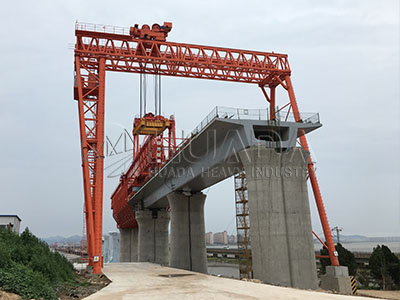

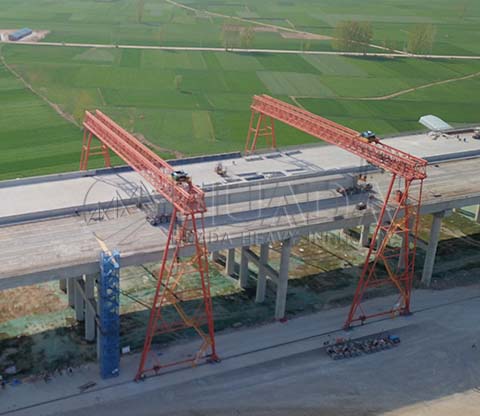

120T Truss Gantry Crane for Bridge Construction

120t gantry crane for bridge construction

Lifting capacity:

120 ton

Span:

36m

Lifting height:

24m

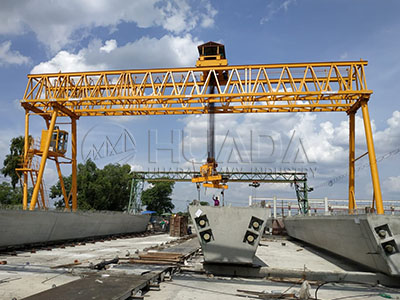

120T Truss Gantry Crane for Casting Yard

Lifting capacity:

120 ton

Span:

40m

Lifting height:

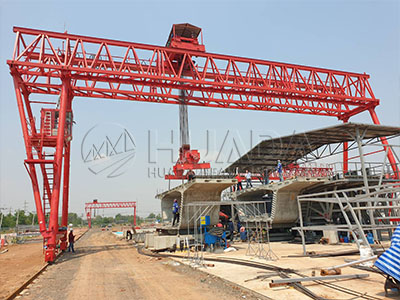

120T Truss Gantry Crane for Precast Yard

Lifting capacity:

120 ton

Span:

25m

Lifting height:

11m

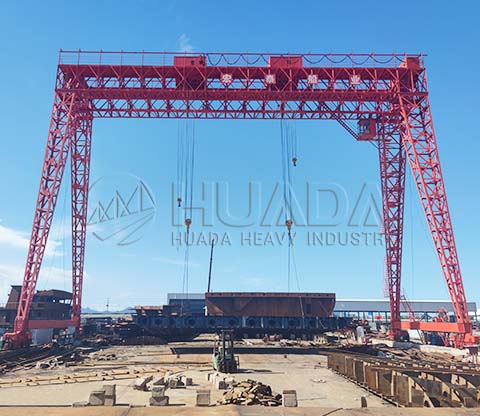

300T Double Girder Gantry Crane for Shipbuilding

Lifting capacity:

150+150 ton

Span:

40m

Lifting height:

48m

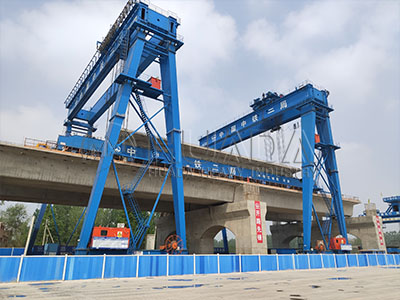

500T Double Girder Gantry Crane for Bridge Construction

500t gantry crane for bridge construction

Lifting capacity:

500 ton

Span:

42m

Lifting height:

24m

Why Choose Huada Heavy Industry

Worldwide Leading Manufacturer and Service Provider of Gantry Crane.

√ Employee 300+
√ 50000 Square Meters
√ R&D Engineeir 50+
√ Above 15 Years Designer 10+
√ Exported Countries 40+
√ After-sales Service Engineers 20+

Customized Design

Full set documents & drawings support, customizing the most economical and optimal material handling solutions for you.

Strict Quality Control in Production

From steel raw material, welding, inspection to painting, our quality assurance department implements a strict quality assurance process.

Full documents Support

We have professional team specialized to send you the products documents and shipping documents.

Free Remote online guidance or site guidance

There are two schemes for you to choose from:
a: Free Remote online guidance: We have already successfully supported the site assembly & commissioning of straddle carriers with free online remote guidance that save much time& cost for our customers.
b: If you need Huada engineers to go to the buyer’s project site to guide the crane installation and commissioning and training of the buyer’s workers, we can arrange and the cost be undertaken by customers.

Experienced After-sales Service in Time

Our after-sales engineer could provide freely remote online inspection and maintenance guidance timely through English.

Maintenance

We will send you the maintenance brochure. For core parts of the straddle carrier is imported from world famous brands, lower maintenance cost. For other parts, where is an issue, where you can find Huada Heavy Industry after-sales support or online chat.

Customer Testimonials

What Our Clients Are Saying?

Our gantry crane products have been used at many customers site. Listen to what our customers say.

Welcome your inquiry

Contact our experts

120t straddle carrier and 120t gantry crane client testimony

60t concrete beam launcher crane client testimony

gantry crane & girder tranporter & straddle carrier client feedback

Frequently Asked Questions

Huada Heavy Industry specializes in the design and manufacture of gantry crane and we have a wealth of industry experience and expertise. We can customize the most economical and efficient material handling solutions to help you improve your productivity and safety, and help you to reduce the cost.

Can you provide European-type gantry crane?

Yes, our European-type gantry crane has been exported to Australia, Philippines and so on.

What’s the rail type and length?

Rail length will be decided according to your travelling length. The rail type will be decided according to the weight of gantry crane and lifting cargo. Don’t worry, after our design for you, we will list our rail type in our drawing for you.

What’s the voltage of your gantry cane?

Generally, it’s 380V, 50Hz, 3 Phases. You can inform us your local industrial voltage and we can customize for you.

What’s the spreader of your gantry crane?

According to different lifting material, we can provide different spreader. Such as lifting beam, hook, grab and so on.

How long is your warranty?

All the crane and parts are guaranteed for 12 months from the B/L date.

How to pack and delivery the gantry crane?

Standard Export Package. All the parts will be delivered by containers and the electrical parts will in packed into wooden box.

Can your engineer help install at our site? And, how many days may take to finish the installation?

Yes, If need the seller send engineers to buyer’s workshop to guide the crane installation and commissioning jobs and training of the buyer's workers, the buyer should bear the costs.
For how long it will take, it depend on the site situation. Such as how many workers will attend to the installation work? How many hours the site workers work per day? Under normal circumstances, 20days is okay for finishing one set installation.
