Rubber Tyred Gantry Crane, RTG Crane Maunfacturer

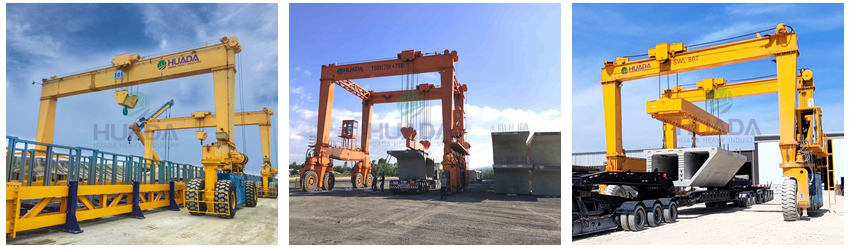

Huada Heavy Industry industrial rubber tyred gantry crane (RTG crane) is an efficient and flexible lifting solution for a wide range of industries and applications. The crane is available in single girder, double girder or A-frame configurations and is electrically or hydraulically driven to meet different customer requirements. In addition, it can be customized to meet specific requirements.

This large mobile gantry crane is suitable for industries and application scenarios such as precast concrete, external logistics and storage, wind energy, tunnel construction, power plants, heavy duty boilers, ports, shipyards, etc. If you are looking for an efficient, flexible and mobile crane to handle heavy loads, the Huada Heavy Industry Industrial Rubber Tire Gantry Crane is the perfect choice for you!

Rubber Tyred Gantry Crane Parts

RTG Crane Sketch

Specification

Model	HD-SC
Capacity(under spreader) (t)	35,40	40
Work Duty	A7,A8	A6,A7
Span (m)	23.47	23.47
Lifting Height (m)	12.2~17.8	16.5
Stack Layers/Passing Layers	3/4~5/6	5/6
Container Model	20',40',45'	20',40',45'
Spreader Rotating Angle	±5°	±5°
Hoisting Speed (m/min)	13/26,23/52	12/18,18/28
Cross Travel Speed (m/min)	50,70	24
Long Travel Speed (m/min)	Full Load-90,Without Load-130	Full Load-20,Without Load-40
Max.Wheel Load (kN)	310	310
Total Rating (kW)	150230	110150
Power Supply	Electric,Diesel engine,Electric-Diesel drive

Features

♦ Lifting Capacity: High lifting capacity and can lift and move loads weighing several tons.

♦ Mobility: Mobile and can move around the yard or other work area using rubber tires. This makes them versatile and able to handle cargo in different locations.

♦ Precise Handling: Precise handling of cargo, allowing for safe and accurate loading and unloading.

♦ Safety Features: Designed with advanced safety features to prevent accidents and ensure safe operation. These features include load sensing devices, anti-collision systems, and emergency stop controls, among others.

♦ Operator Cab: Have an operator cab that provides a clear view of the work area and controls for operating the crane.

♦ Easy Maintenance: Designed for easy maintenance and repair, with accessible components and diagnostic systems that help identify and fix problems quickly.

Safety Feature of RTG Crane

• Automatic rectify deviation control

• Weight overload protection device

• Top quality polyurethane buffer

• Phase protection

• Lifting limit switch

• Cross-traveling limit switch

• Long traveling limit switch

• Voltage lower protection function

Suitable for Different Industries

Rubber-tired gantry (RTG) crane is a mobile gantry crane used to stack and handle containers at container terminals or intermodal yards. Here are some common applications of RTG cranes:

► Container handling: The primary application of rubber tired gantry crane is container handling at container terminals. The mobile container gantry crane can stack containers up to 6 high and 4 rows deep, allowing for efficient use of space.

► Intermodal yard handling: rubber tyred gantry crane is also used in intermodal yards to handle containers that are being transported by rail or truck. The RTG crane can move quickly between stacks of containers, allowing for efficient loading and unloading of containers.

► Heavy-lift handling: Rubber tyred gantry crane can be used for heavy-lift handling of oversized cargo, such as machinery or large components.

► Break-bulk cargo handling: Rubber tyred gantry crane can also be used to handle break-bulk cargo, such as bags, boxes, and pallets.

► Project cargo handling: Rubber tyred gantry crane can be used for project cargo handling, which involves the transportation of large and heavy cargo for construction projects, such as wind turbines or power plant equipment.

► Container yard management: Rubber tyred gantry crane can be used to manage container yards by moving containers to and from storage locations, and loading and unloading containers from trucks or trains.

Professional Rubber Tyred Gantry Crane Manufacturer

► Huada Heavy Industry is a professional rubber tyred gantry crane manufacturer that can meet any requirements for this type of crane. The company strictly controls everything from raw material purchase to production to ensure high-quality products. The experienced engineering team can tailor reasonable lifting solutions and configurations according to customers’ requirements for equipment and actual conditions.

► Huada Heavy Industry provides a full range of services including crane design, manufacture, sales, installation, and after-sales service. We can offer gantry crane installation service and dispatch after-sales service engineers to the work site to assist in the installation and commissioning of the crane. Technical support is also available 24/7, and experienced engineers provide technical consulting services and life-long service support.

► Huada Heavy Industry also offers training services for rubber tired gantry crane operators in various forms, including onsite training services and reference materials such as videos, manuals, and pdfs. Additionally, the crane is manufactured strictly with international standards, making it convenient for maintenance. If any problems arise, the after-sales service engineers are available to assist.
